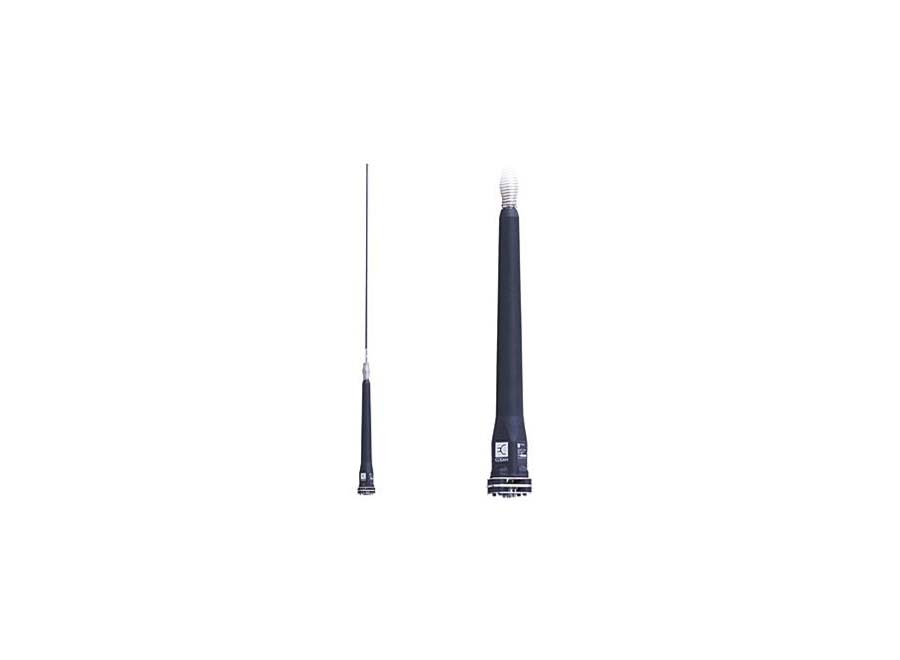

9350 Automatic Tuning Whip Antenna

Codan’s internationally acclaimed 9350 Automatic Tuning Whip Antenna is designed for mobile operation with transceivers that have a large channel capacity.
The 9350 Antenna is constructed to withstand harsh field and environmental conditions. It meets or exceeds the shock and vibrations requirement for MIL-STD-810.
Typically, the 9350 takes only a few seconds to tune to any frequency. It will seek the optimum tuning point for all operating conditions — this ensures the best communications possible.

Rugged design
The 9350 Antenna is constructed to withstand harsh field and environmental conditions. It meets or exceeds the shock and vibrations requirement for MIL-STD-810.
Fast, optimum tuning
Typically, the 9350 takes only a few seconds to tune to any frequency.
High radiation efficiency
The 9350 antenna has a comparably high rate of radiation efficiency, rated for maximum voice power of 125 watts PEP.
Continuous tuning
The whip antenna provides continuous tuning to any required frequency over the transmit/receive operating range of 2–30 MHz.
Two whips supplied

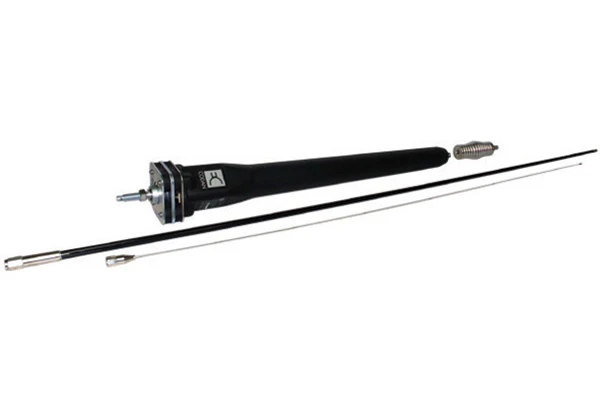

Two whip top sections are provided with the 9350 antenna – the primary whip encased in polyurethane covered fiberglass, and a shorter backup whip made from stainless steel.
Sensitive to weak signals
When in Scan or Free Tune Receiver mode, a broadband amplifier is activated. This makes the antenna sensitive to even the weakest signals over the entire frequency range.
